Achieving Full WordPress SEO Automation w/n8n

[Dev Log] Achieving Full WordPress SEO Automation with n8n

• Co-worker Model: Gemini Pro
• Tech Stack: n8n, WordPress, Google Sheets, OpenAI API, Rank Math
• Goal: Build an end-to-end automated pipeline—from content generation to SEO optimization and instant publishing.
• Date: January 6, 2026
• Progress: 4th Iteration
• Focus: Troubleshooting 5 Key Automation Issues

---

1. Issue: Workflow Interruption (System Standstill)

• Symptoms: A perfectly functioning workflow suddenly stopped executing without any trigger.
• Initial Hypothesis: I suspected an IP block or location-based restriction because I recently moved from Korea to Canada.
• Root Cause Analysis: It wasn’t a location issue. The OAuth credentials (tokens) between n8n and Google/WordPress had expired, causing the connection to drop.
• Solution: Reconnected accounts and refreshed access tokens.

2. Issue: Infinite Duplicate Publishing

• Scenario: The workflow kept publishing the same article based on the first keyword in the Google Sheet.
• Logic Analysis:
  • n8n: “Fetch the first row with Status = READY.” → Fetches Row 1.
  • WordPress: Publishes the post.
  • Google Sheets: Failed to update the status to DONE.
  • Next Execution: Since Row 1 was still READY, n8n fetched it again. (Infinite Loop)
• Solution: Refined the ‘Update Row’ node logic. I set a limit to process exactly one row at a time and forced the system to update the status to DONE immediately after publishing.

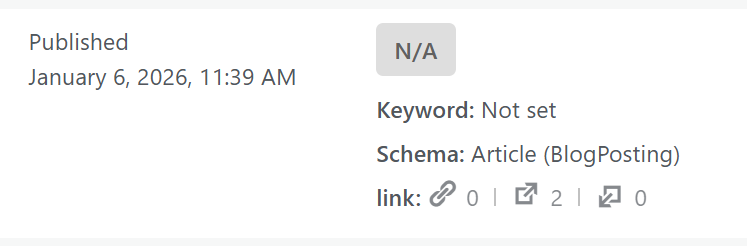

3. Issue: Automating ‘Draft’ to ‘Published’ Status

• Symptoms: Automation was working, but posts were piling up as ‘Drafts’ in WordPress, requiring manual publishing.
• Solution: Configured the WordPress node settings to change Post Status from ‘Draft’ to ‘Publish’ for a truly hands-free experience.

4. Issue: Rank Math SEO API Integration (SEO Automation)

• Objective: Automatically set “Focus Keywords” via the Rank Math API to optimize SEO scores.
• Trials & Errors:
  • Attempt 1 (404 Not Found): I used a relative path (/wp-json/...). Fixed by using the absolute URL (https://mydomain.com/wp-json/...).
  • Attempt 2 (400 Bad Request): Parameter mismatch. Found that Rank Math requires an objectID rather than just a standard id. Re-structured the payload based on documentation.
  • Attempt 3 (JSON Parsing Error): Special characters and line breaks in AI-generated text broke the JSON syntax.
• Final Success Code (JSON Payload):

JSON{ "objectID": {{ $('Create a post').item.json.id }}, "objectType": "post", "meta": { "rank_math_focus_keyword": "{{ $('If').item.json.Keyword }}" } }

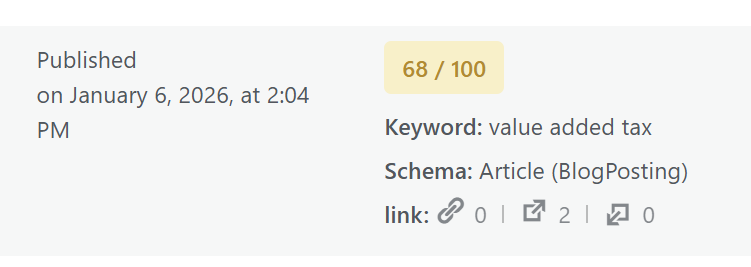

• Result: Succeeded in syncing Focus Keywords automatically upon publication.

5. Issue: Unexpected Workflow Crashes & Duplicate Handling

• Conflict: AI (Gemini) kept suggesting I add more nodes, while I knew the existing structure was correct. It turned out the AI had lost context of my previous workflow history.
• Root Cause: The [HTTP Request (SEO)] node was throwing errors and terminating the entire workflow before it could reach the final ‘Update Row’ node.
• Solution: Changed the node’s error handling setting to “On Error: Continue.”
• Result: Even if an SEO update fails, the system ignores the error and proceeds to mark the row as DONE, preventing duplicate posts.

---

Final Summary

• System Stability: Resolved duplicate publishing issues through robust error handling.
• SEO Excellence: Achieved “Green Light” SEO scores by automatically setting Focus Keywords via API.
• Efficiency: Now, I simply fill a Google Sheet with keywords, and the system automatically builds a library of SEO-optimized posts while I sleep.

Next Steps

1. Smart Internal Linking: Add logic to link images to relevant internal URLs.
2. Hook Engineering: Refine AI prompts to generate high-CTR (Click-Through Rate) headlines.
